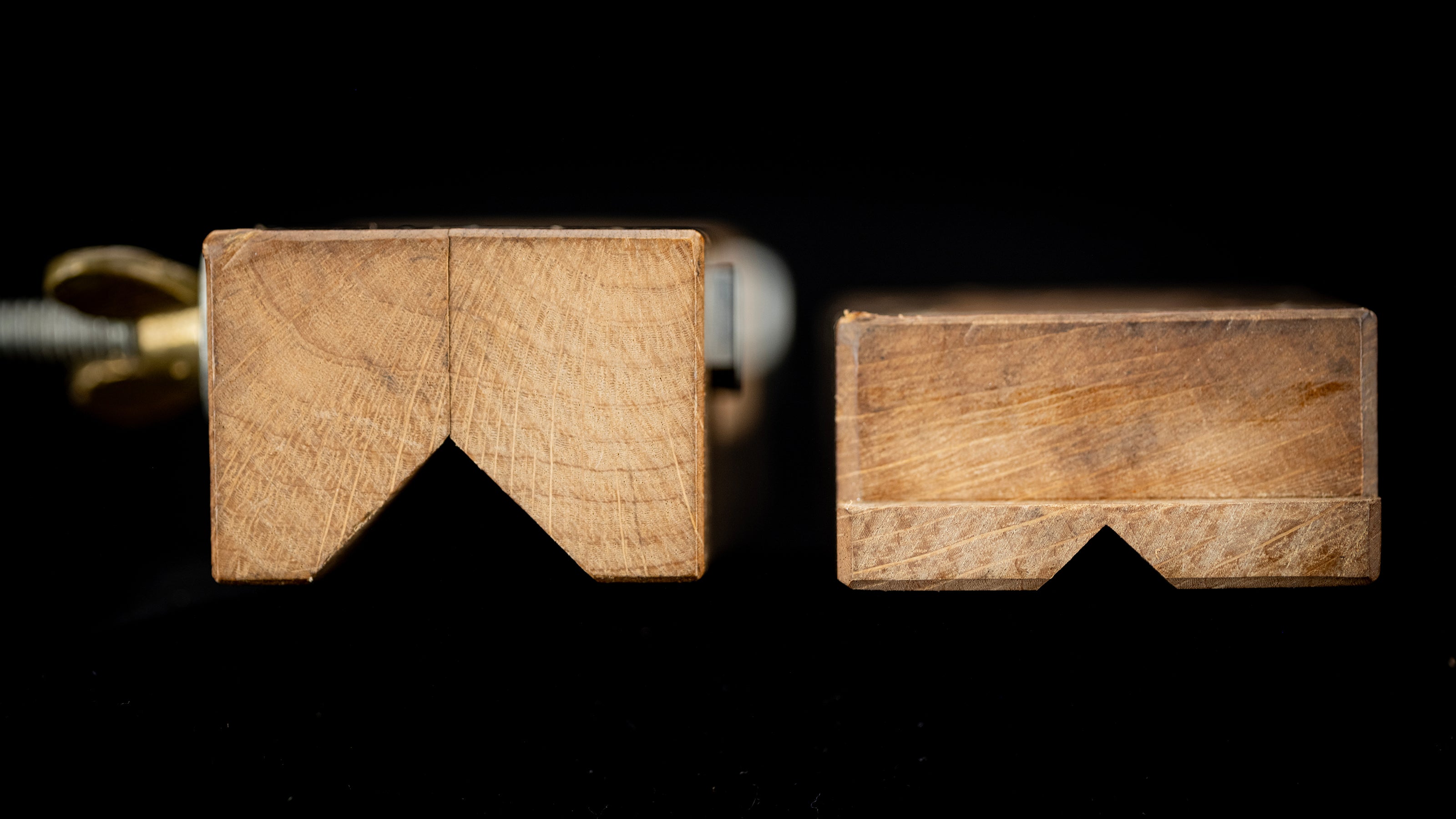

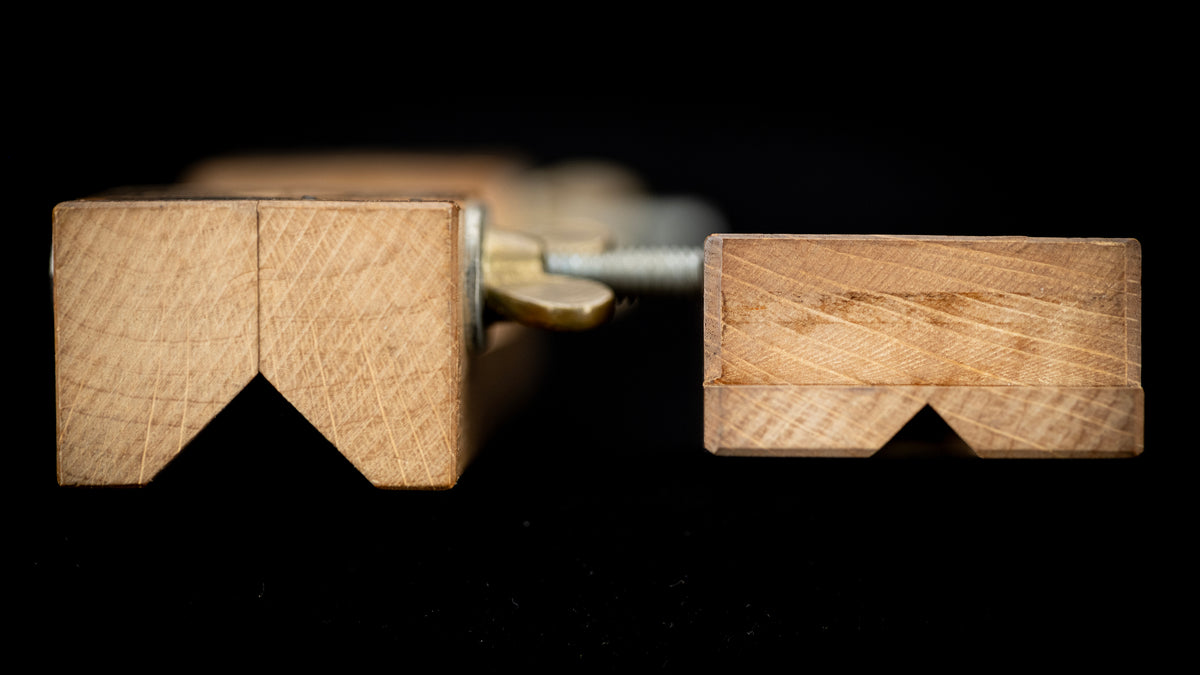

Kirimen-Kanna Japanese Adjustable Special Chamfer Plane - 30mm

Smith name: Komori (In my judgment)

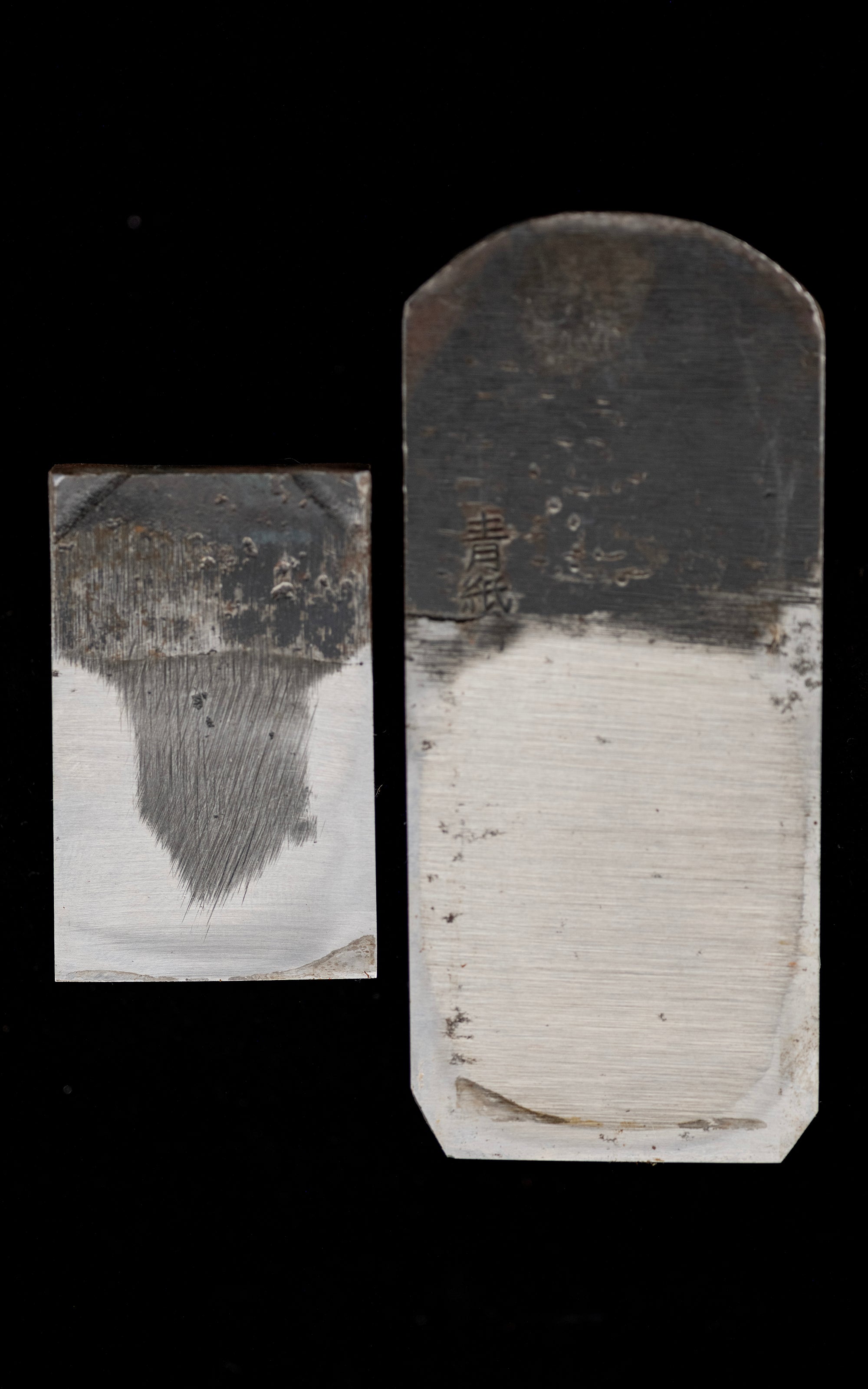

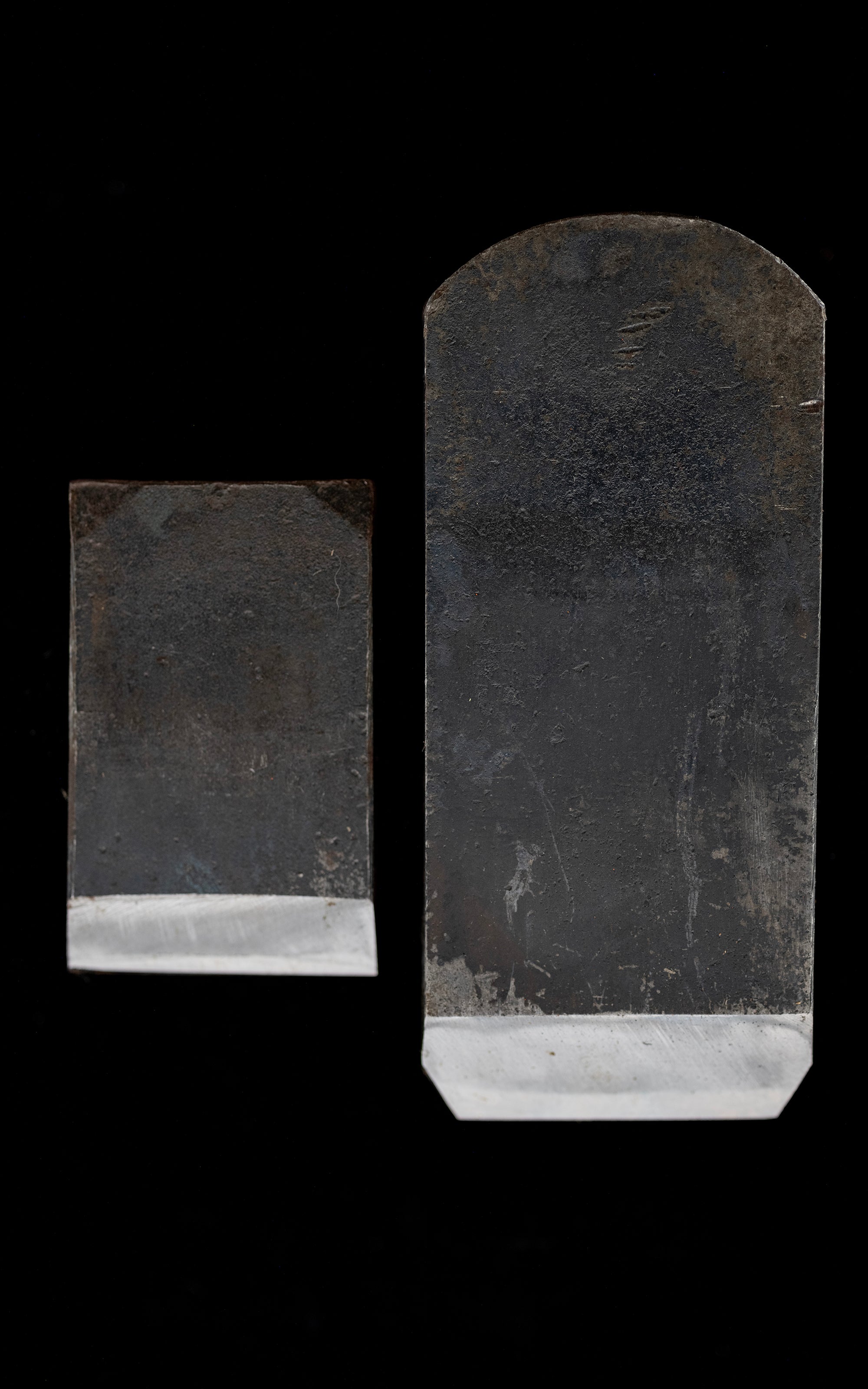

Steel: Blue Steel

Jigane(Iron part of the blade): Modern soft iron

Blade width: 30mm

Blade total length: 72mm

Blade thickness: The blade near the bevel(about 4.70mm)，Top of Blade（about 6.50mm）

Wooden body artisan name: Unknown

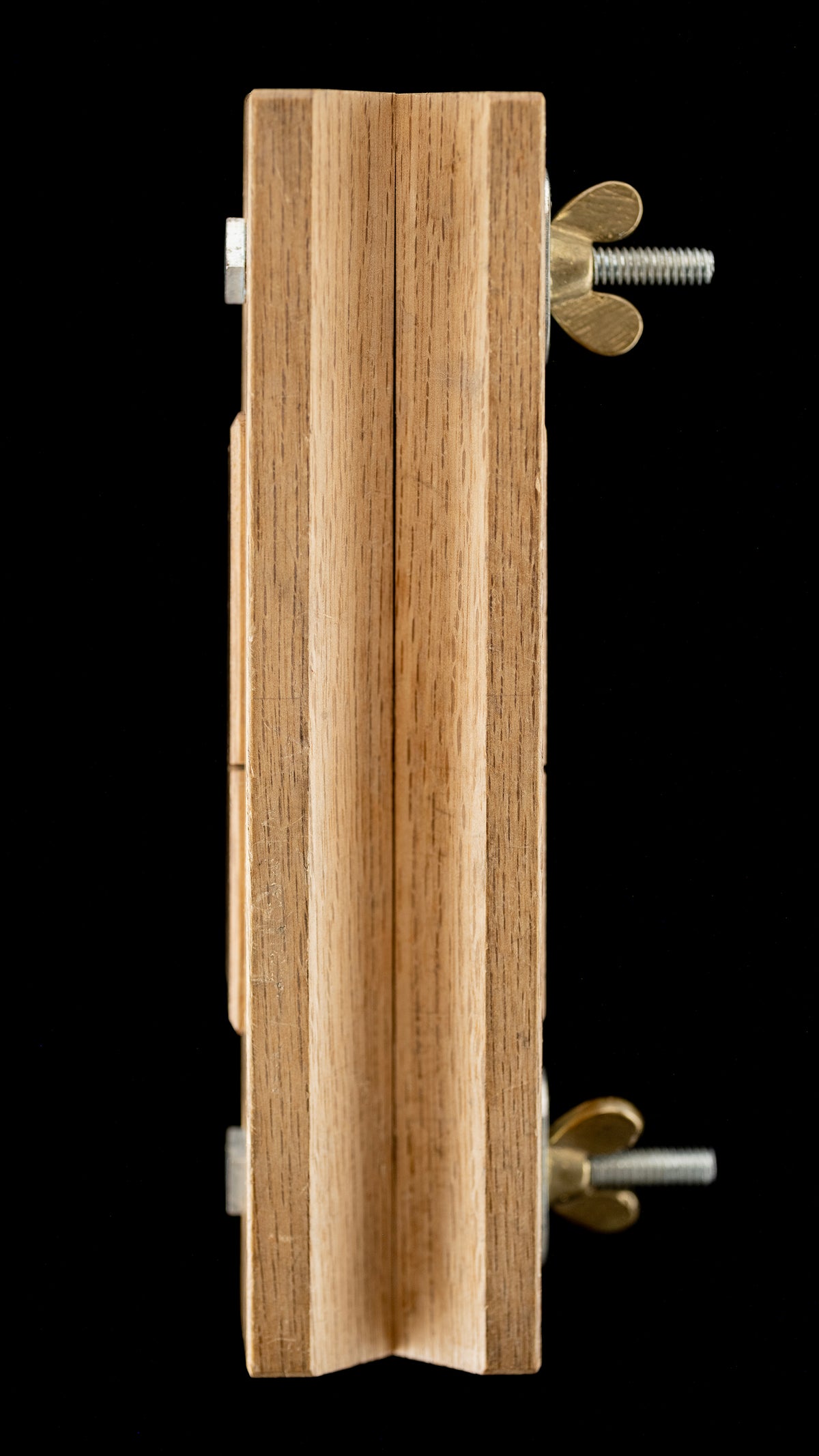

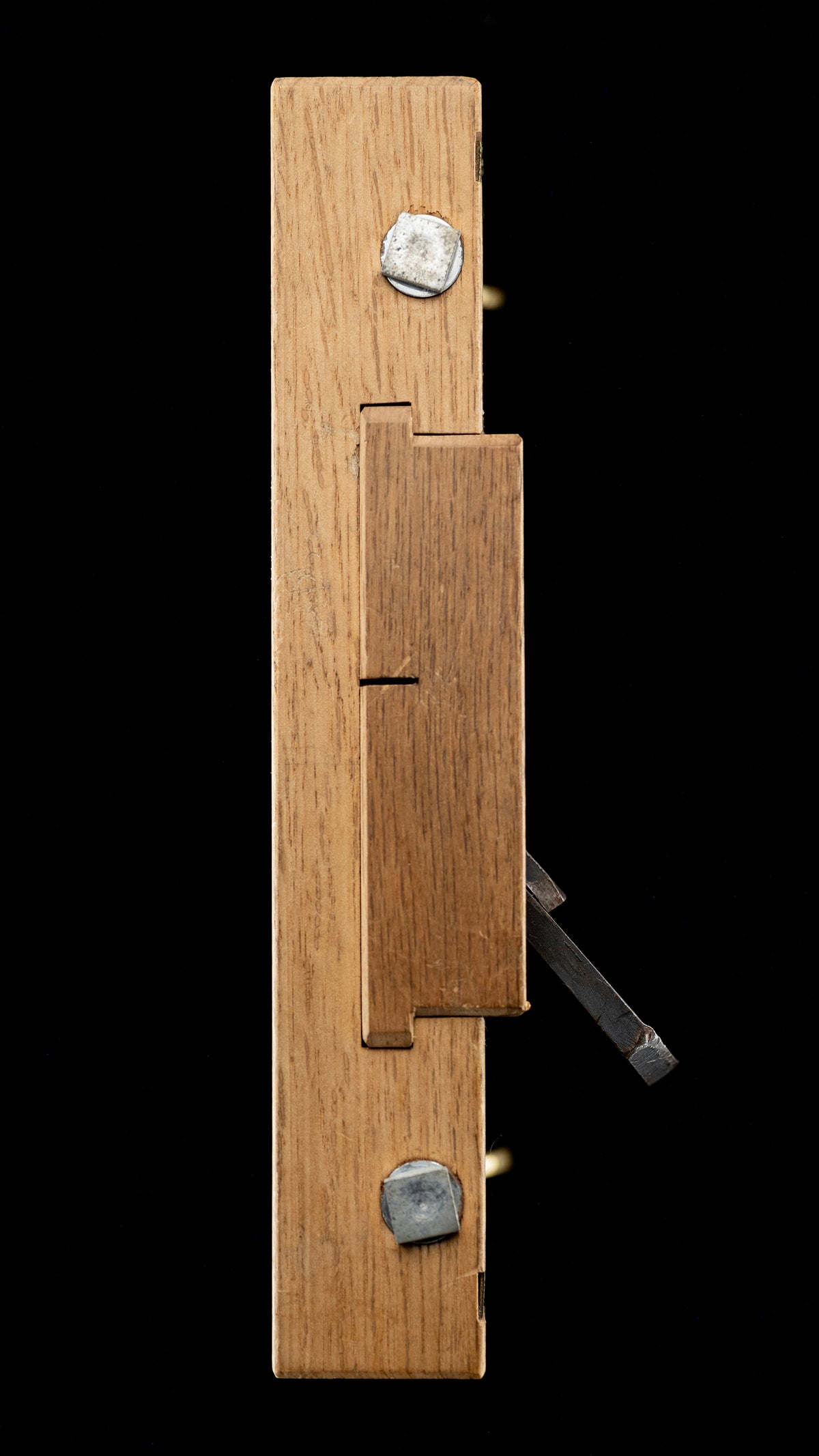

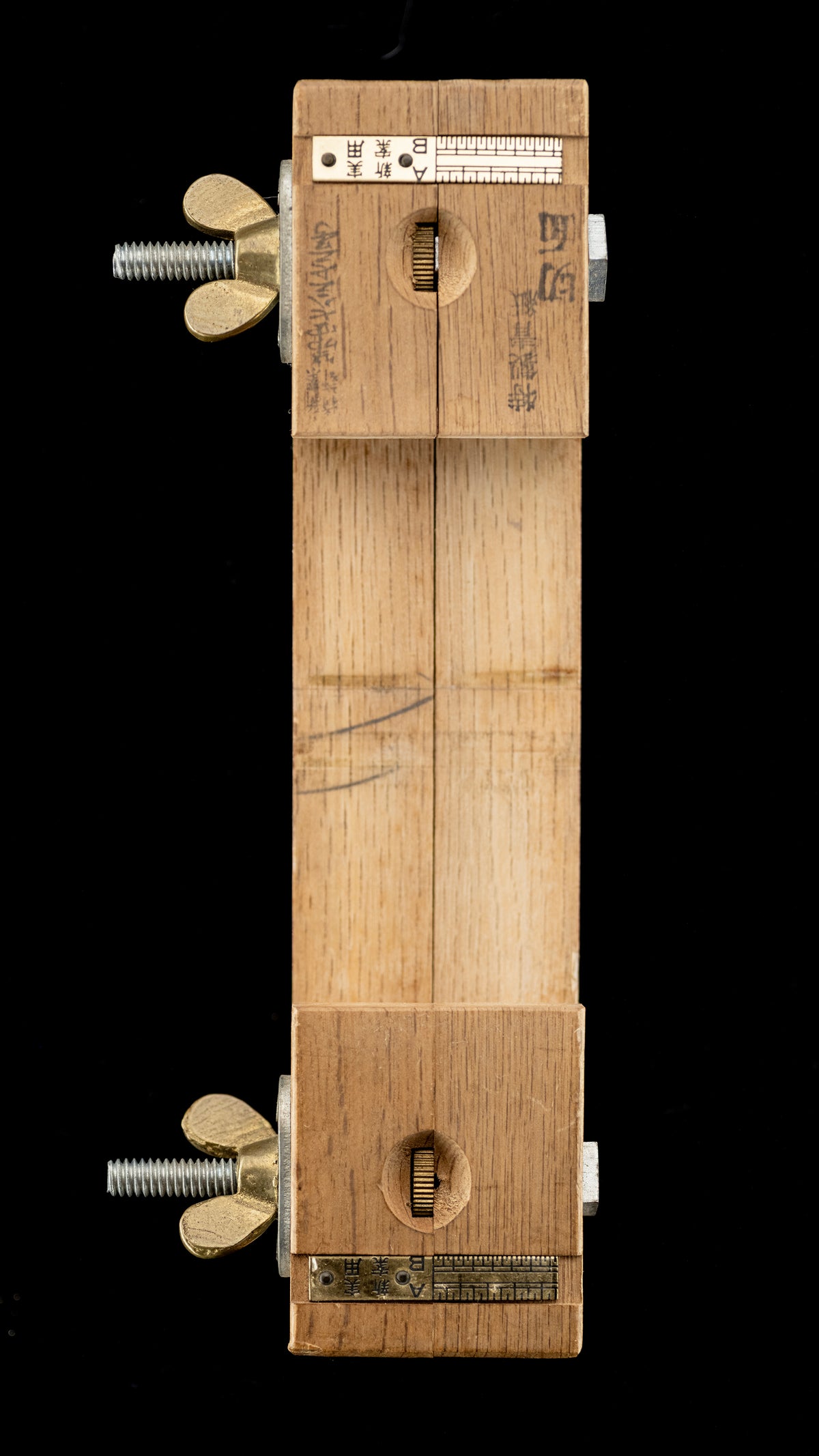

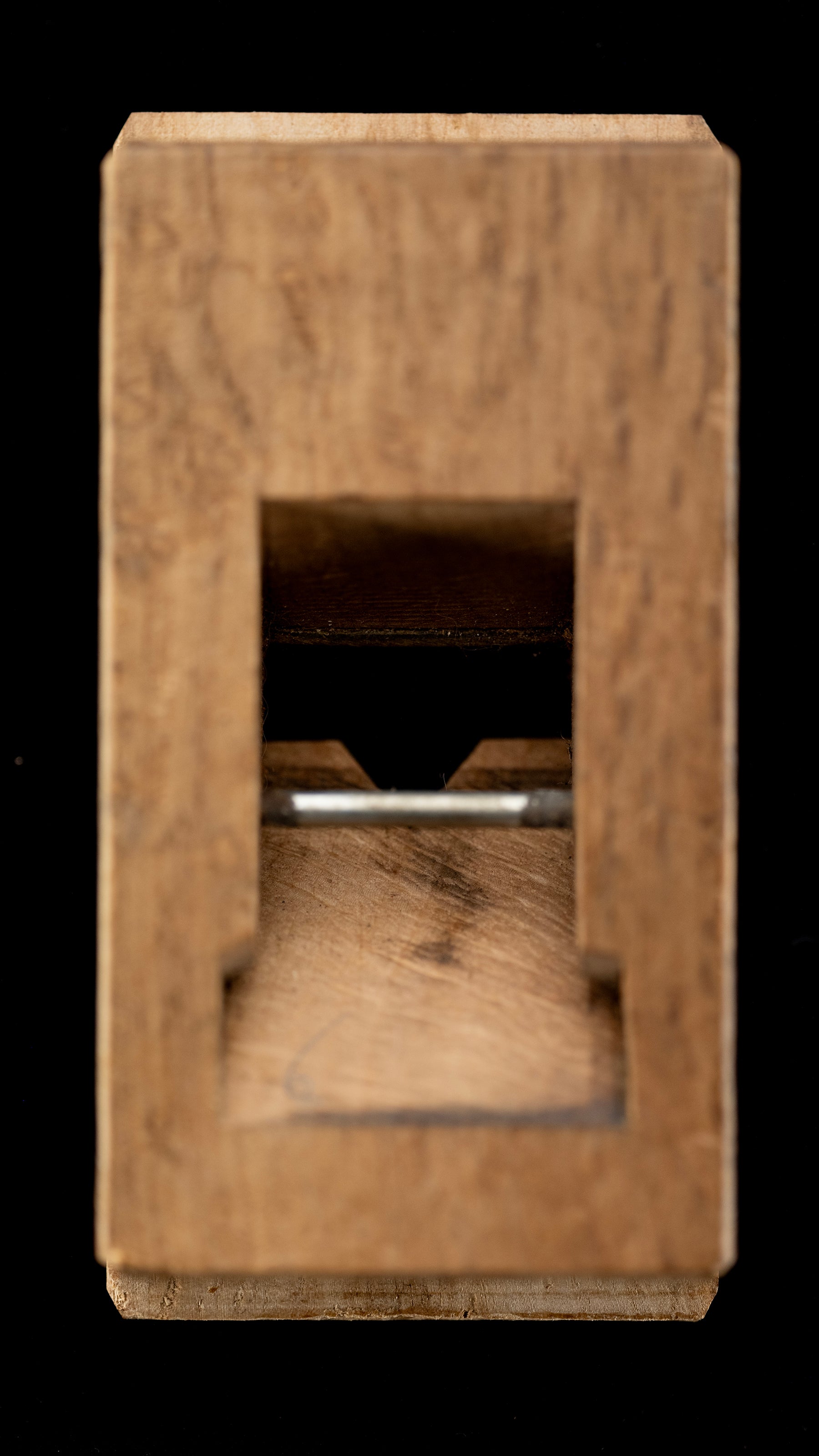

The length, height (at its highest point), and width(widest part) of the wooden body :

202mm, 50mm, 40mm

Wooden Body: Japanese white oak

Manufacture Era: before 1990

Weight: 446g

Blade Angles: 29°

Accessories：-

Additional Information: It has seen light use and remains in great condition. Originally acquired from a retired miyadaiku (shrine/temple carpenter) in the Tokyo area.

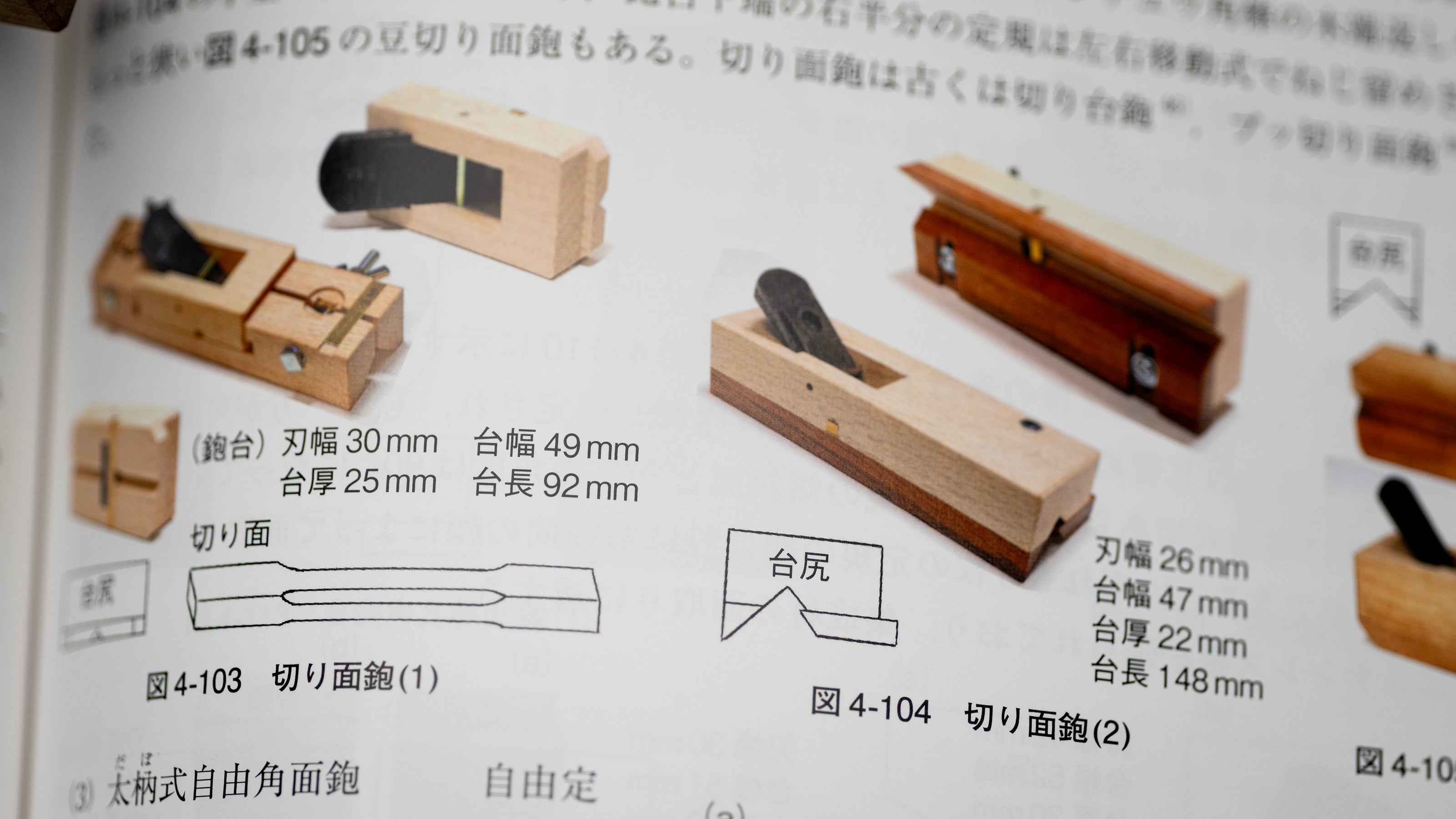

This is a rare specialty chamfer plane that has become quite hard to find in recent years, known in Japan as a Kirimen-ganna(切面刨). It is specially designed to chamfer only the central section of a workpiece, leaving both ends square. The second-to-last photo shows a line drawing illustrating the finished work made with this type of plane.
