Sarumentori-Kanna Japanese Wood Screw Adjustable Chamfer Plane 60° By Yukichika - 24mm ③

Brand name: Yukichika

Smith name: Probably Sekikawa

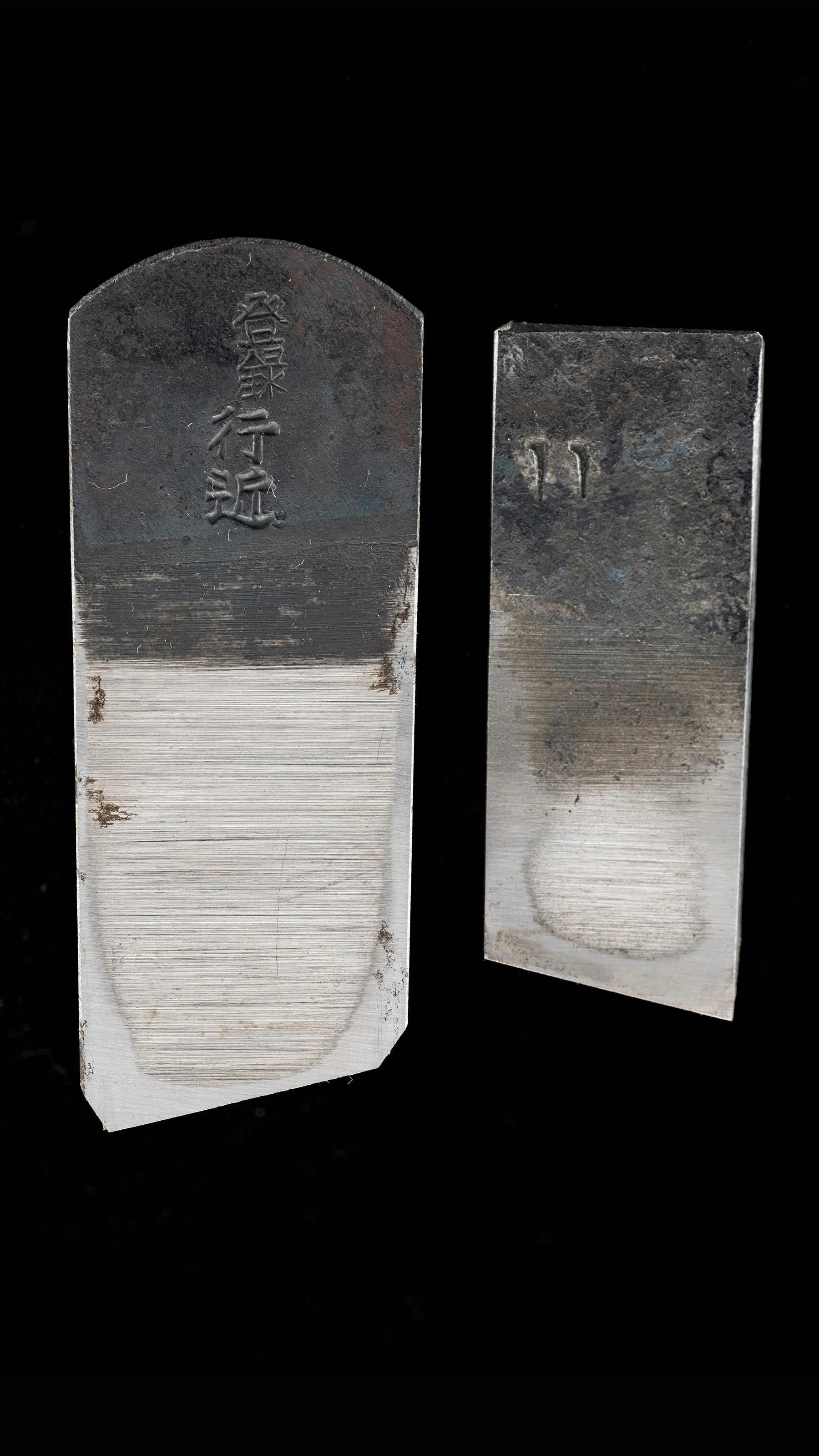

Steel: Blue Steel

Jigane(Iron part of the blade): Kamaji

Cutting edge width: 21mm

Blade width: 24mm

Blade total length: 62mm

Blade Angles: 24°

Blade thickness: Blade Bottom(about 4.30mm)，The blade near the bevel（about 3.0mm）

Wooden body artisan name: Aigami Choukichi (1905～1988)

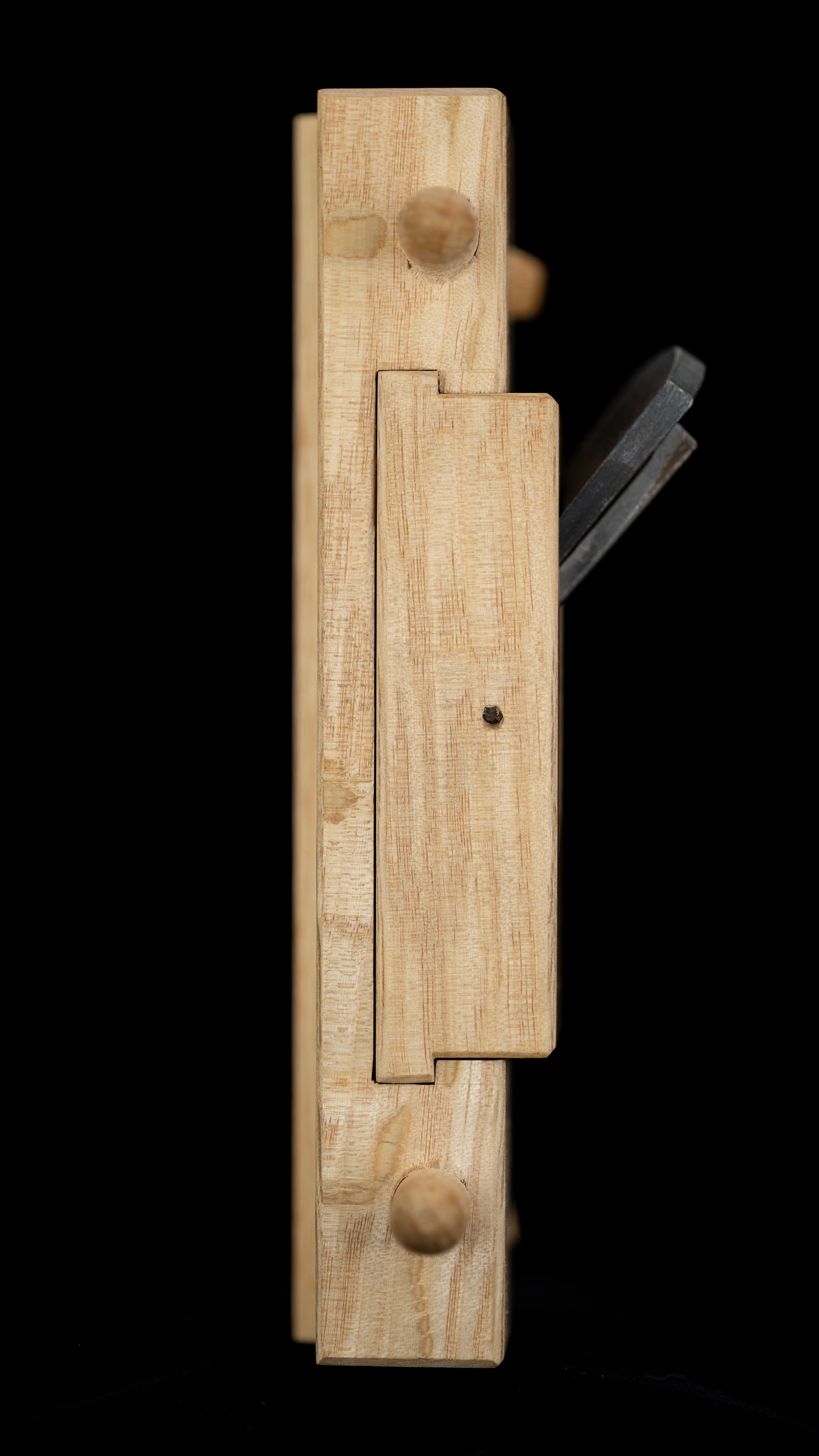

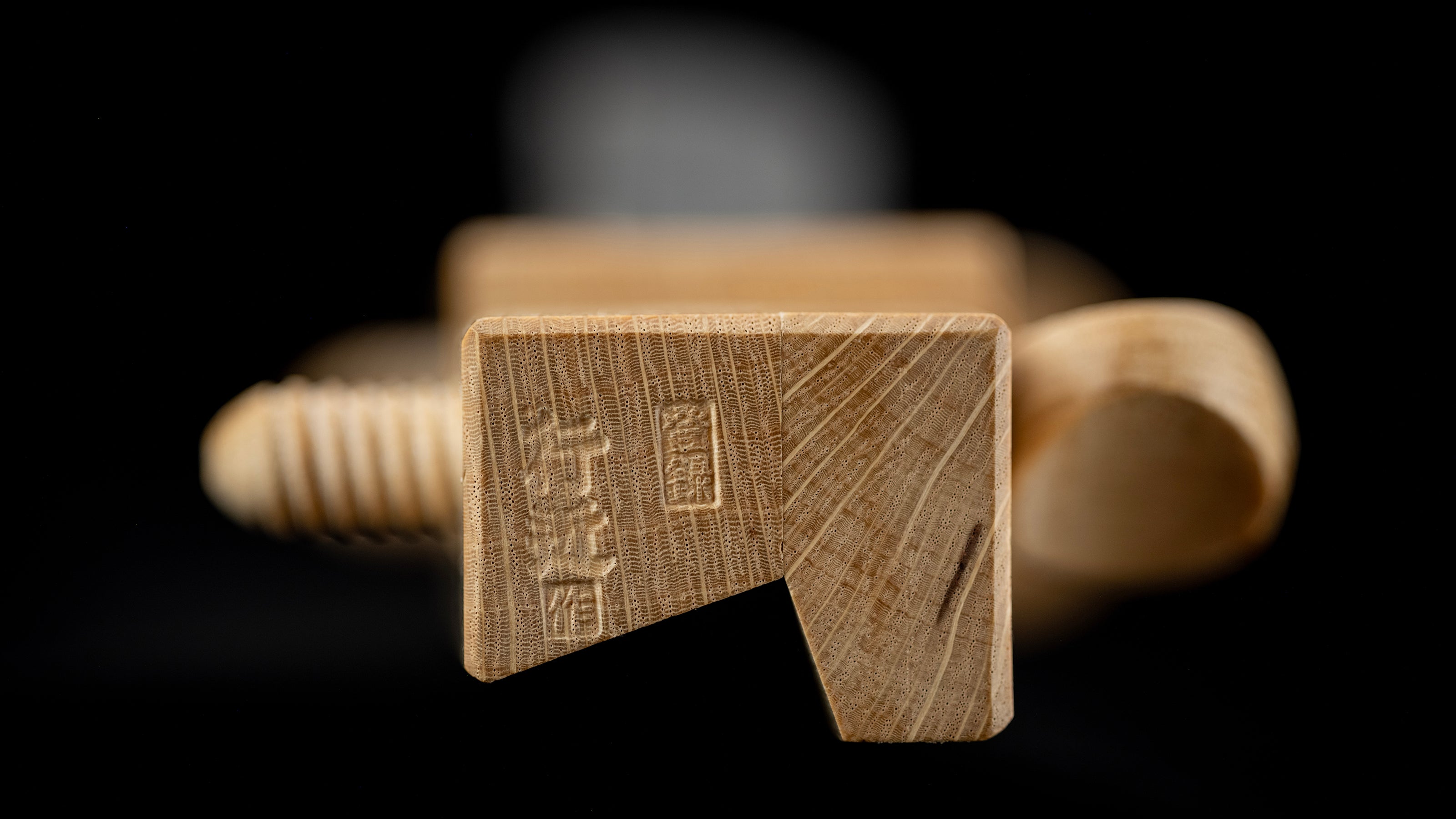

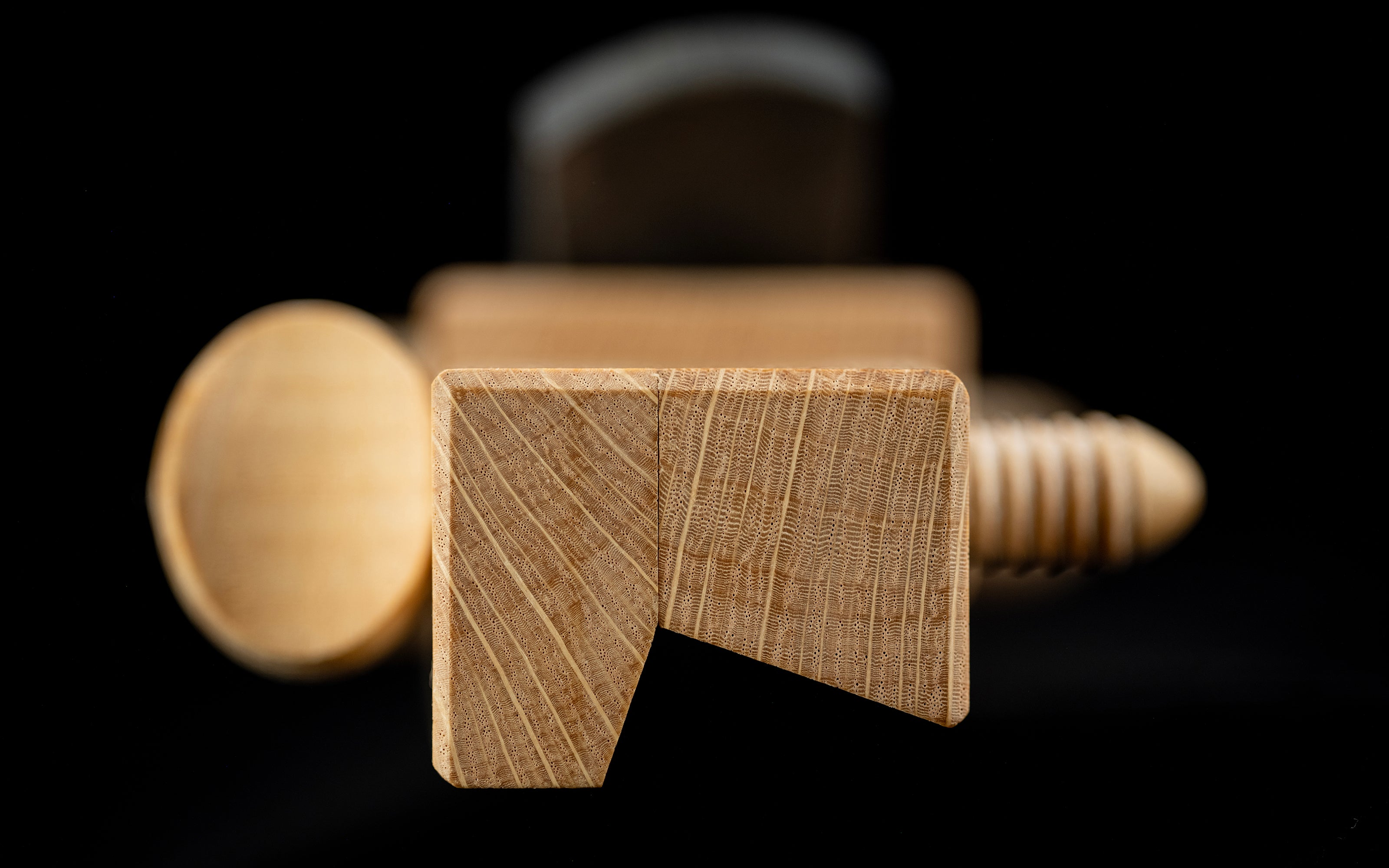

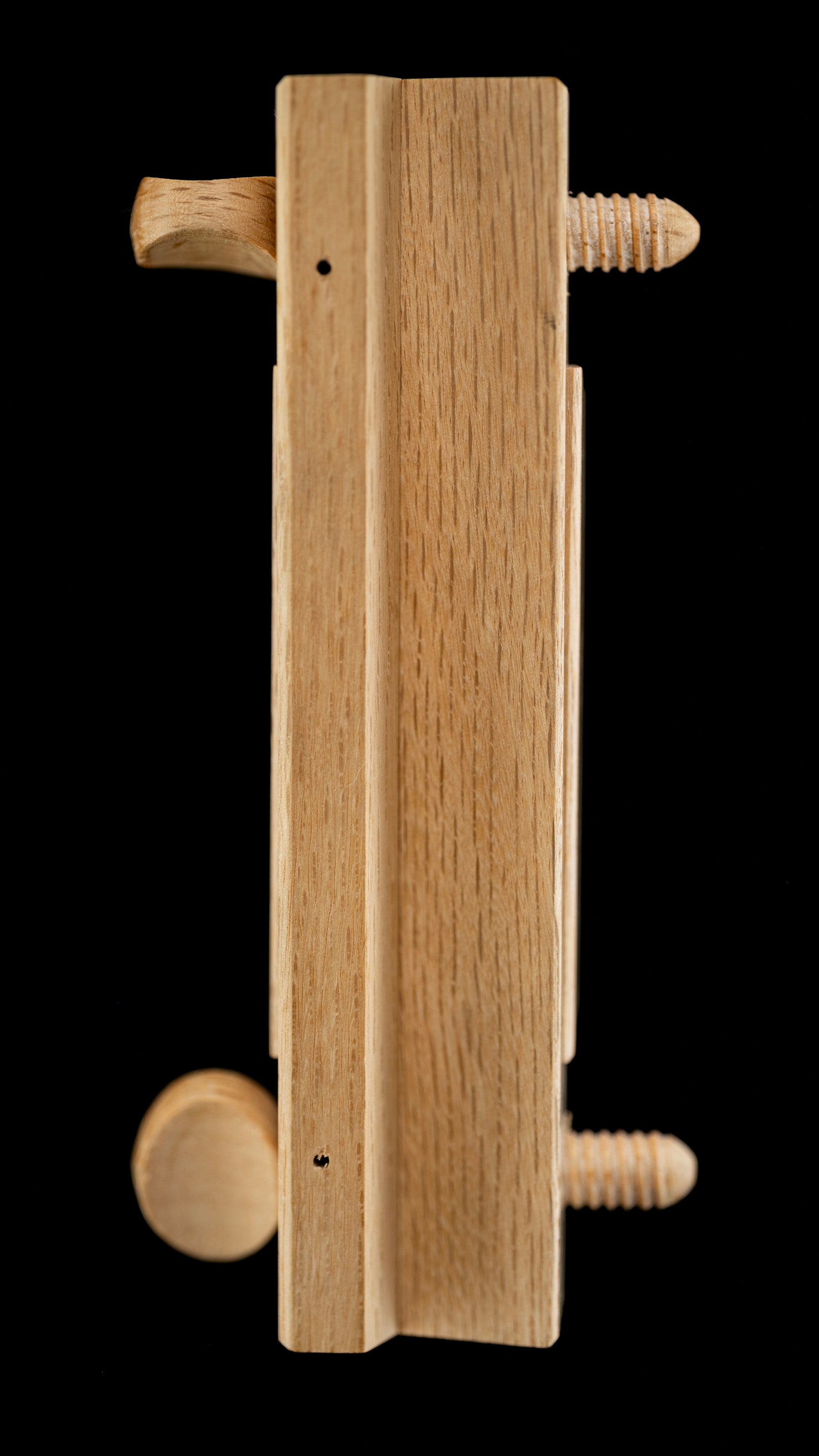

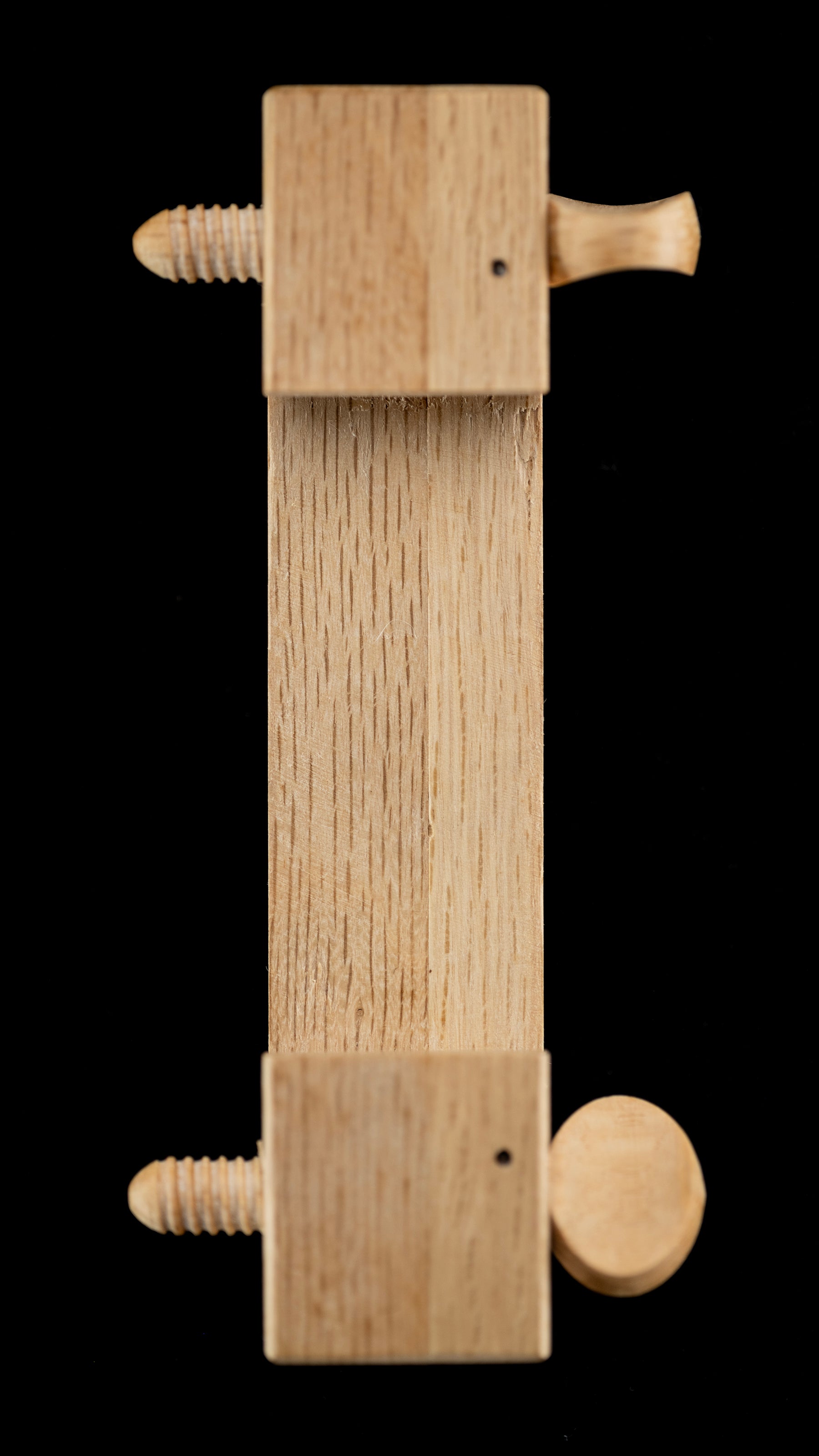

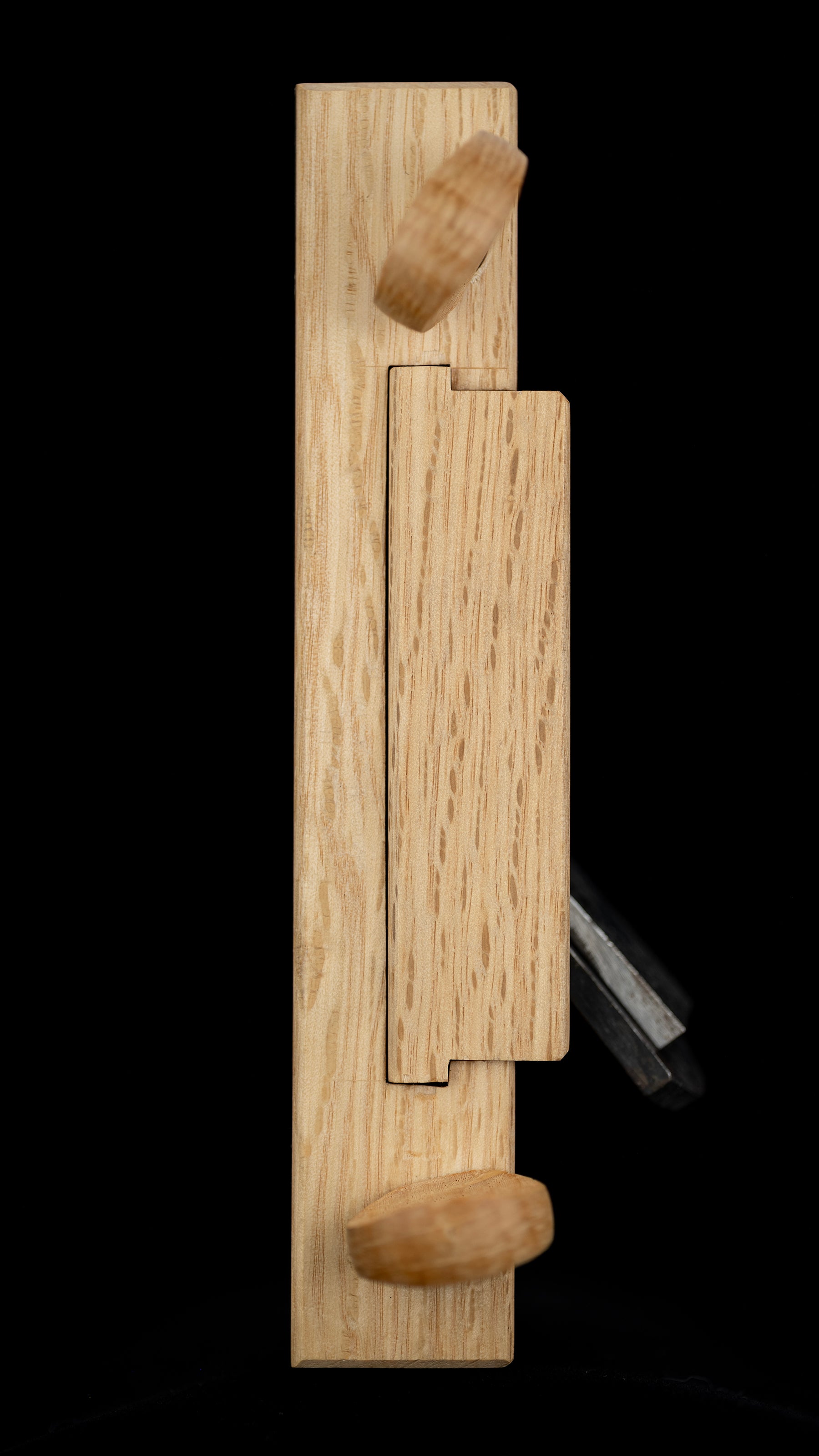

The length, height (at its highest point), and width(widest part) of the wooden body :

150mm, 32mm, 35mm

Wooden Body: Japanese white oak

Manufacture Era: 1970 ~ 1980 (according to collector’s memory)

Weight: 174g

Accessories：-

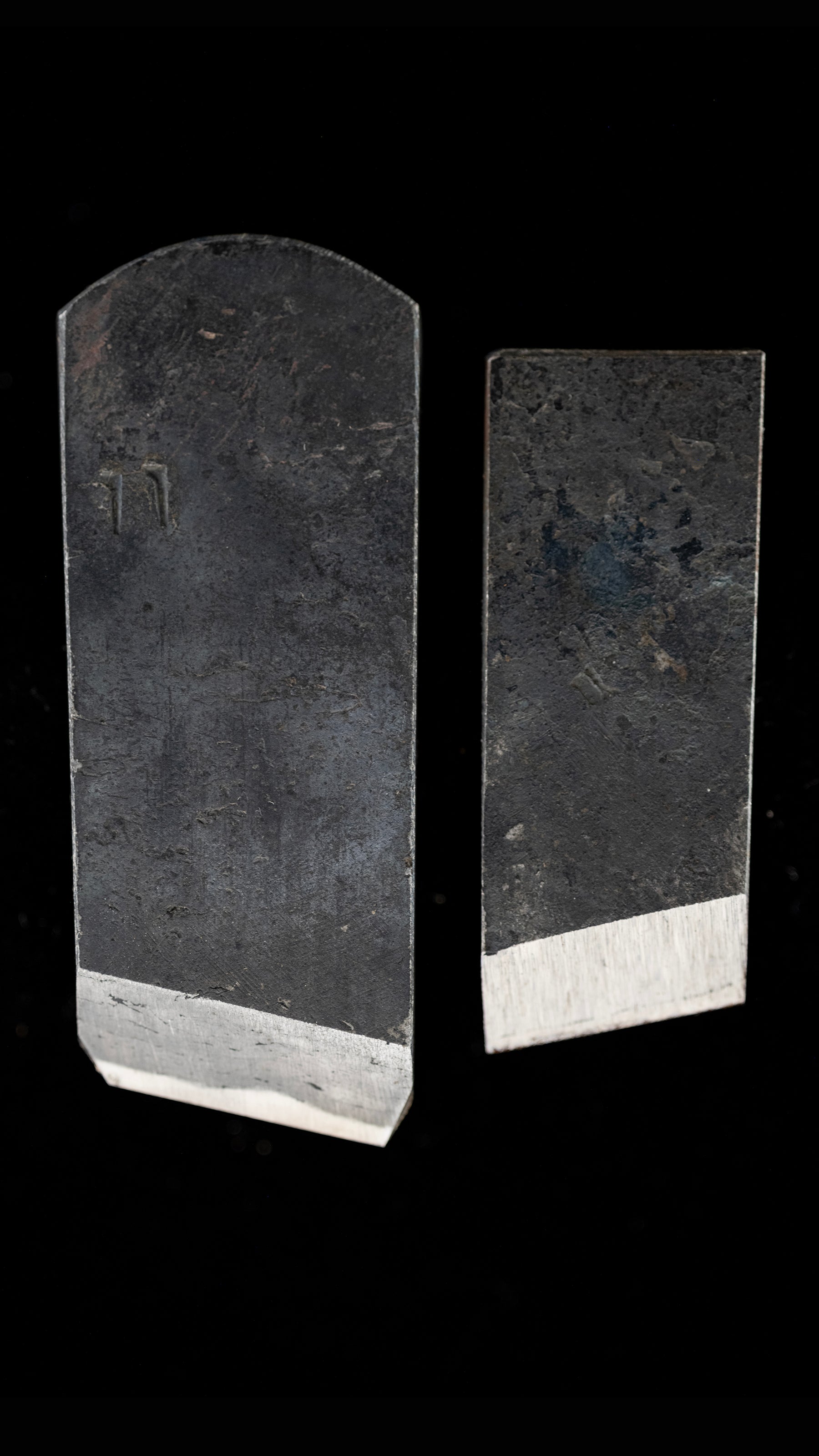

Additional Information:  Unused, in good condition. This plane was sourced from a specialty tool shop in the Kansai region. It is slightly smaller than the similar-type plane by Yukichika that I sold previously, making it a better fit for a tateguya (door/window maker) or a sukiya carpenter. Also, unlike the previous plane, its uragane (chipbreaker) was personally tuned by Yukichika himself.

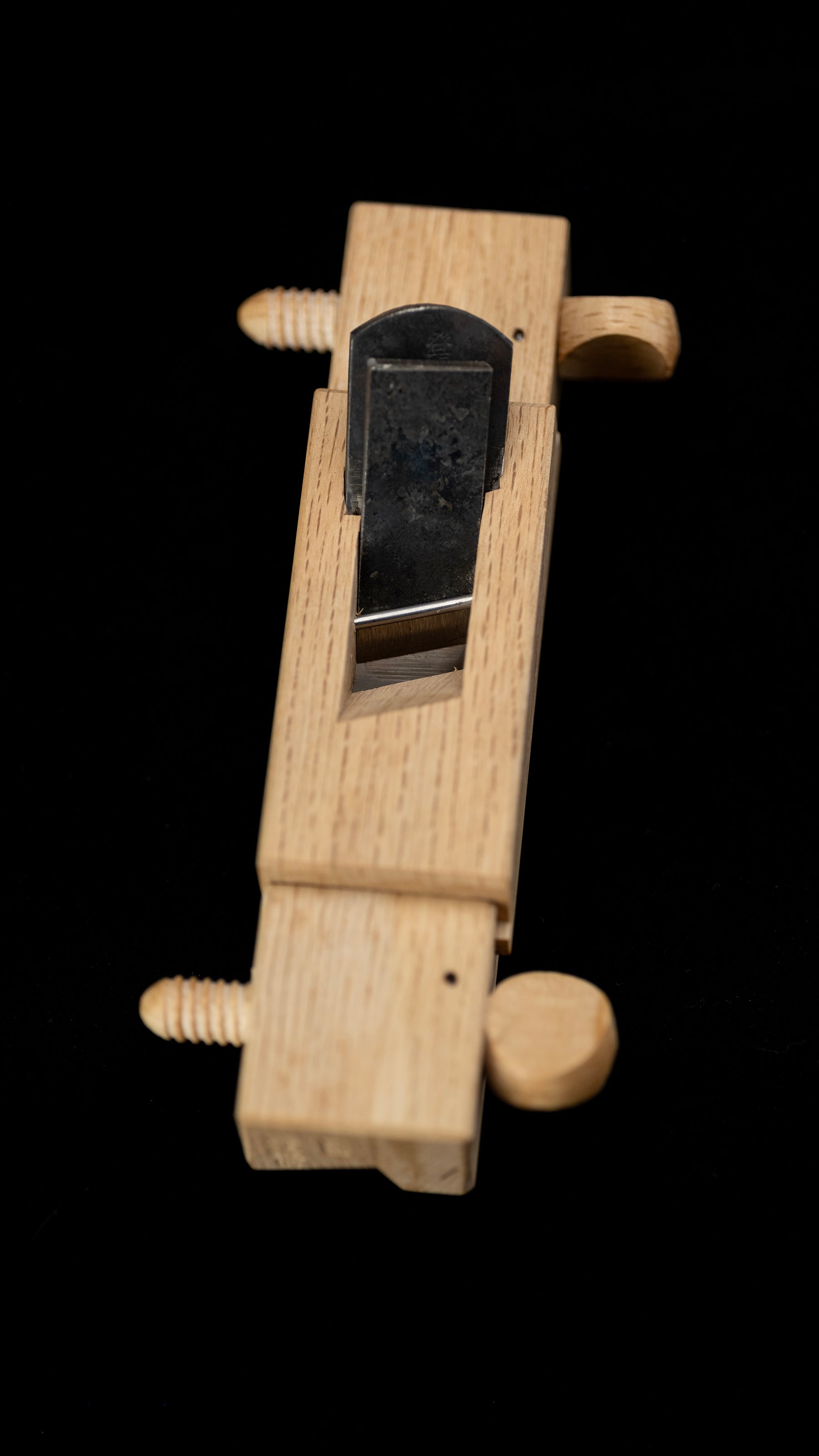

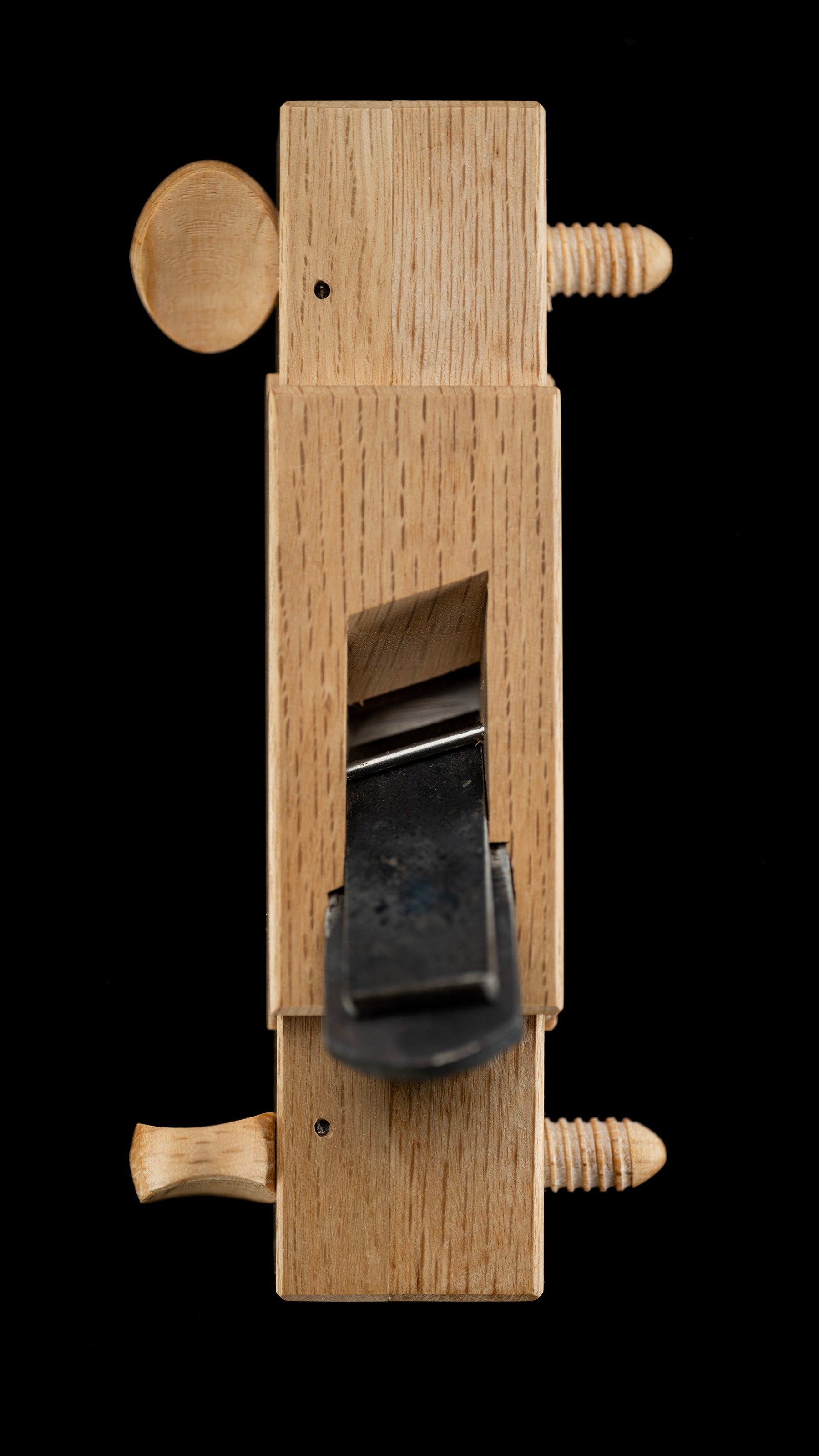

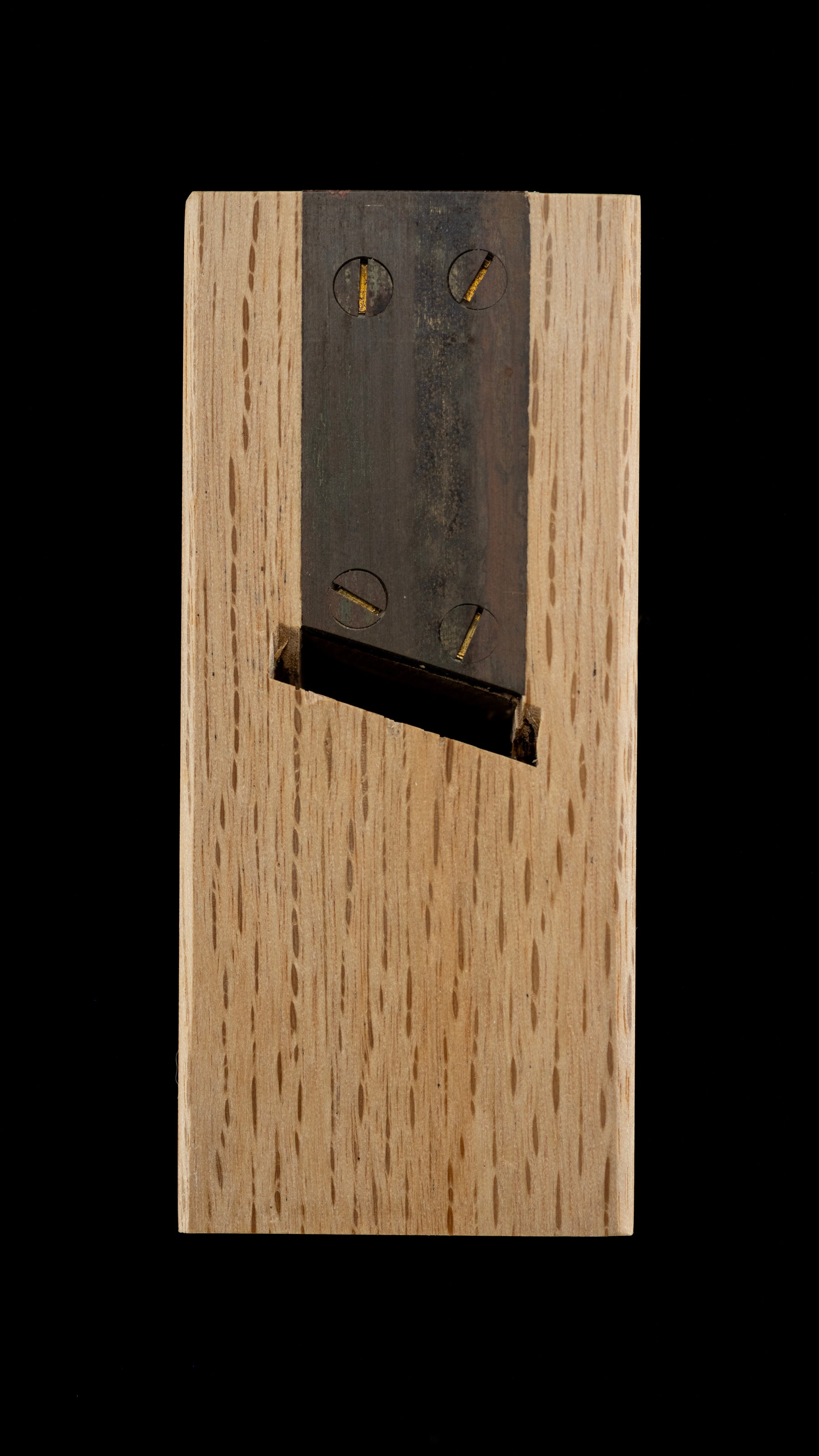

There is some minor surface rust on the blade, but it is purely cosmetic and does not affect the tool's functionality.  It differs from the other two sarumenori planes uploaded in this same batch. First, the blade features the Yukichika brand name. Second, the blade is installed at an angle, similar to a kiwakanna (skew rabbet plane). This design effectively reduces cutting resistance when dressing harder timber species.

Regarding the origin of the name 'saru' for this type of plane and its application, please refer to the link below: [saruboo tenjou/猿頬天井]

For more details about Yukichika, please refer to my blog：

「Yukichika」 The Genius "Daiya" - Japanese Woodworking Plane Body Artisans
